Gel-free loose tube stranded cable with steel tape armored PE sheath (GYFS) Wasin Fujikura

Short Description:

GYFS Gel-free loose tube stranded cable with steel tape armored PE sheath


Product Detail

Product Tags

Description

The fibers, are positioned in a loose tube made of a high modulus plastic. The interstice inside and outside of the tubes are filled with water-blocking yarns and water blocking tape. A dielectric fiber reinforced plastic rod(FRP), coated with polyethylene if necessary locates in the center of core as a strength member. Tubers (and fillers) are stranded around the strength member to form a compact and circular cable core. The plastic coated steel tape is wrapped over the core and extruded into a polyethylene sheath to form a cable.

Feature

Gel-free cable design improve efficiency of  splicing and  clean;

Special filling gel filled loose tubes provide perfect  optical fiber protection.

Corrosion resistance phosphate steel wire with high modulus as central strength member.

The flexible buffer tubes are easily to route in closures.

Excellent mechanical and  temperature performance, perfect .crush resistance.

Dielectric FRP rod with high modulus as central strength member.

Jacket provide superior protection against UV radiation, fungus, ,abrasion and other environmental factors.

Strict craft and raw material control enable lifespan over 30 years.

Performance

Application: long haul and building network communication;

Installation: duct/aerial;

Operating temperature: -40~+70℃;

Bending radius: static 10*D/ Dynamic20*D.

Structure and technical specifications

Fiber count Nominal diameter
(mm)
Nominal weight
(kg/km)
Max fiber per tube NO.OF(Tubes +filler) Allowable tensile load (N)
(short term/long term

Allowable crush resistance (N/10cm)
(short term/long term

2~36

11.4

130

6

6

1500/600

1000/300

38~72

12.5

152

12

6

1500/600

1000/300

74~96

14.2

194

12

8

2000/600

1000/300

98~120

15.7

230

12

10

2000/600

1000/300

122~144

17.3

274

12

12

2000/600

1000/300

>144

Available upon customers request

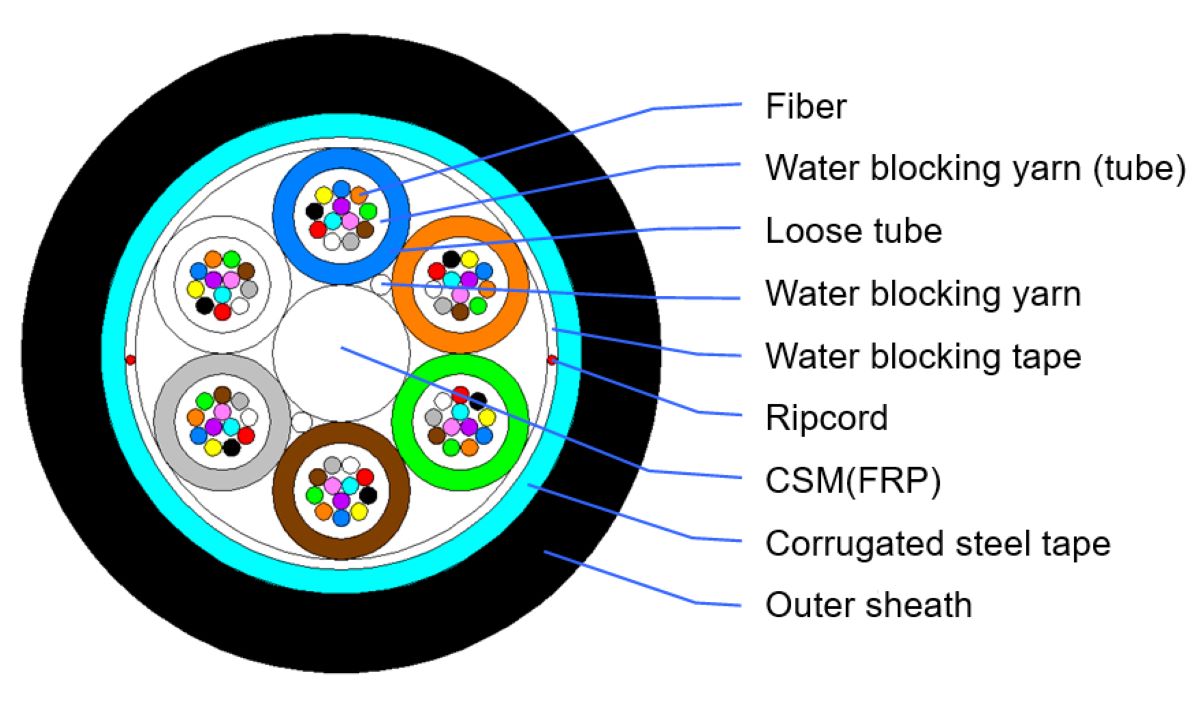

GYFS 1200
