Non-metallic strength member bow-type drop cable (GJXFH(V)) Wasin Fujikura

Short Description:

GJXFH(V) Non-metallic strength member bow-type drop cable, indoor bow type cables


Product Detail

Product Tags

Description

One or more bend insensitive fiber is positioned in the center, and placed on both side of two paralleled strength member, finally extrude flame retardant jacket.

Feature

Able to be terminated onsite

Easy for stripping, and splicing, simplified installation and maintenance

Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

Better cable structure with two parallel strength member provide excellent crush resistance performance

Low smoke halogen-free flame-retardant sheath, pro-environment

Performance

Application: Indoor network communication;

Installation: duct;

Operating temperature: -20~+60℃;

Bending radius: static 10*D/ Dynamic20*D.

Structure and technical specifications

Spec

Outside diameter

mm

Max. tensile load (N)

Crush resistant(N/10cm)

Short term

Long term

Short term

Long term

GJXFH(V)-1/2/4

2.0×3.0

80

40

1000

500

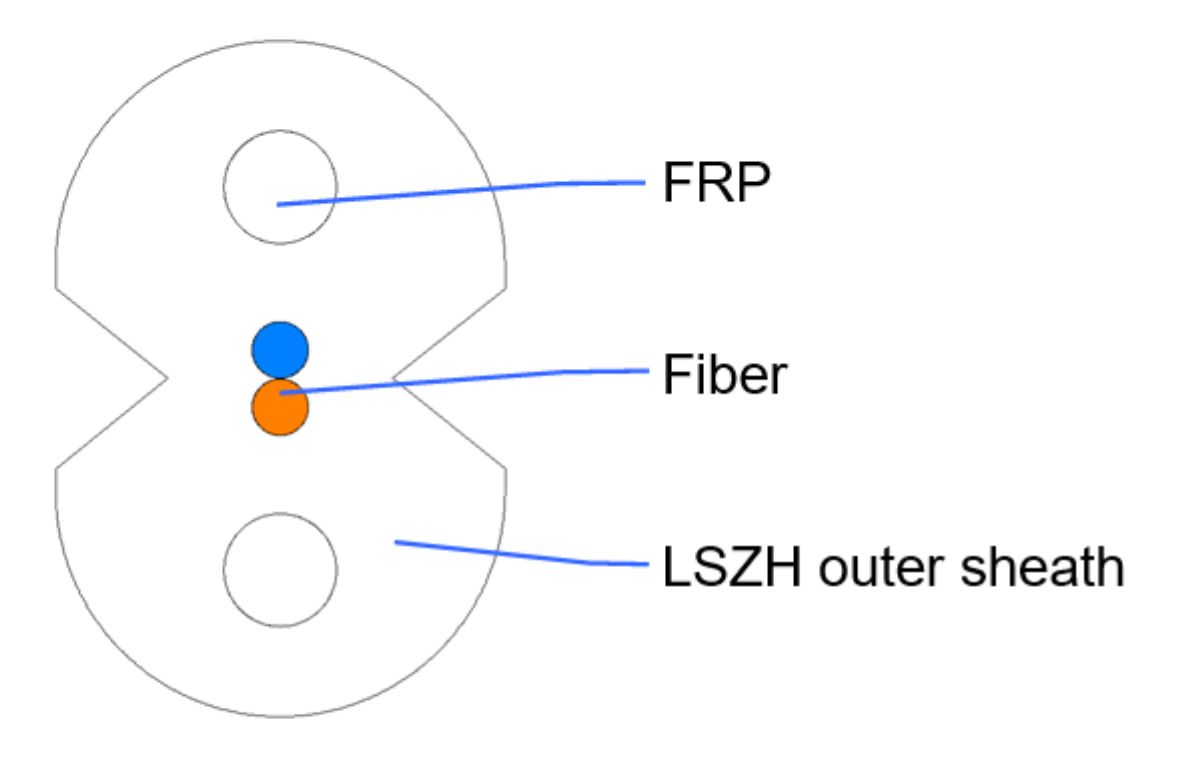

GJXFH 1200
