Short Description:

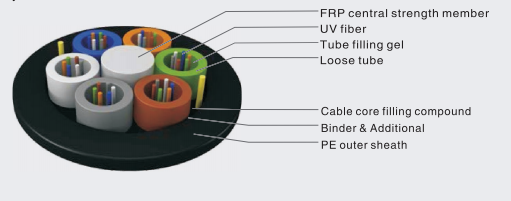

GYFTY

► FRP central strength member;

► Loose tube stranded;

► PE sheath outdoor cable

Send email to us

Product Detail

Product Tags

GYFTY

► FRP central strength member;
► Loose tube stranded;
► PE sheath outdoor cable

Performance

► Application: long haul and building network communication;
► Installation: duct/aerial;
► Operating temperature: -40-+70℃;
► Bending radius: static 10*D/ Dynamic20*D.

Feature

► All selection water blocking construction, provide good performance of moisture-proof and water block;
► Special filling gel filled loose tubes provide perfect optical fiber protection.
► High young's modulus reinforce plastic (FRP) as central strength member.
► All dielectric structure, light weight, easy installation, good electromagnetic resistance and suitable for operating in electrical system or frequently lighting areas.
► trict craft and raw material control enable lifespan over 30 years.
► For flame retardant cable, outer sheath can be made of low-smoke zero halogen (LSZH) material, and the type is GYFTZY
► The aluminum tape armored or steel tape armored cable can be provided, the type is GYFTAorGYFTS
► On customer's requests, longitudinal color strip on outer sheath can be provided. More details please refer to GYTA series.
► Special cables structures can be designed and manufectured on customer's request.

Structure and technical specifications

Fiber count		Nominal diameter (mm)	Nominal weight (kg/km)	Max fiber per tube	NO.OF (Tubes +filler)	Allowable tensile load (N) (short term/ long term)	Allowable crush resistance (N/lOcm) (short term/long term)
	2~36	10.2	85	6	6	1500/600	1000/300
	38~72	11. 1	100	12	6	1500/600	1000/300
	74~96	12.6	130	12	8	1500/600	1000/300
	98~120	14. 1	162	12	10	1500/600	1000/300
	122~144	15.9	204	12	12	1500/600	1000/300
	146~216	15.9	205	12	18 (2 layers)	1500/600	1000/300
>216		Available upon customer's request
