Simplex steel tube armored fiber cable (GJGH) Wasin Fujikura
Description

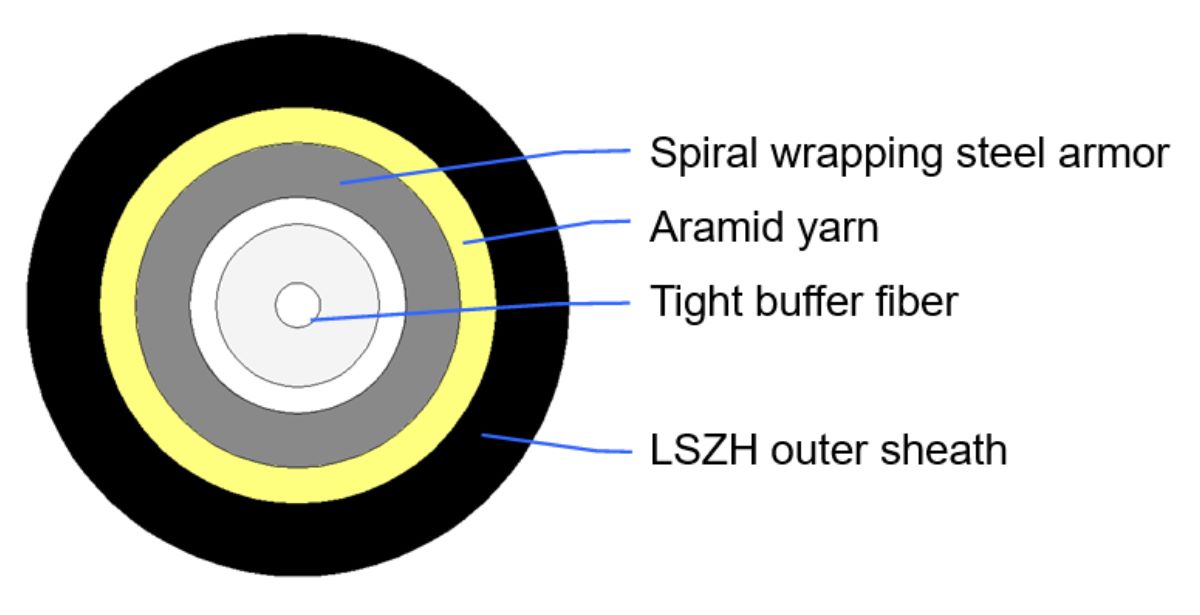

Tight buffered fiber are surrounded with a layer of aramid yarns as the strength member.. A steel wire is wrapped around the fiber helically. Finally, a flame retardant sheath is extruded to form the cable.
Feature
Small bending radius, compact and light-weight
Good flexibility, suitable for making patchcord and pigtail
Excellent flame-retardant performance, free to choose different flame-retardant grades sheath
Steel wire armored makes the cable good performance of anti-rodent.
Performance
Indoor cabling or used on the device’s components
Element of indoor breakout cable
Pigtails and patchcord between instruments and communication equipments
Structure and technical specifications
|
Type |
Outside diameter （mm） |
Max. tensile load (N) |
Crush resistant(N/10cm) |
||
|
Short term |
Long term |
Short term |
Long term |
||
|
GJGH |
3.0 |
200 |
100 |
3000 |
1000 |
